Print, Copy, Scan
Print Speed: 31ppm
Toner Cartridge: 3500 Sheets
Connection: USB + LAN
Print Resolution: 1200 × 1200 dpi (software enhanced)
Additional Function: Duplex Print, Document Feeder (ADF)
Paper Capacity: 250-sheet Input Tray/ 50-sheet Manual Feeder
Monthly Duty Cycle: Up to 80,000 pages
| PRINTING | M3176ADN | |
| Print Speed (A4) | 31ppm A4 | |
| Print Speed (A5 long side) | 50ppm A5 | |
| Auto-duplex Print Speed | 14ppm A4 | |
| Print Resolution | 600x600dpi, Software enhanced 1200x1200dpi | |
| First Page Out Time | Less than 6S | |
| Preheat Time | Less than 50S | |
| Print Language | GDI | |
| Connectivity | USB | USB2.0 |
| Ethernet | 10Base-T/100Base-TX | |
| WLAN | NA | |
| Operating Systems | Windows | Windows Vista, Windows 7, 8.1, 10,11 |
| Windows Server 2012、2016、2019、2022 | ||
| RedOS | √ | |
| Astra Linux (Update later) | √ | |
| MacOS (Update later) | √ | |
| iOS | Deli Print APP | |
| Android | Deli Print APP | |
| General | ||

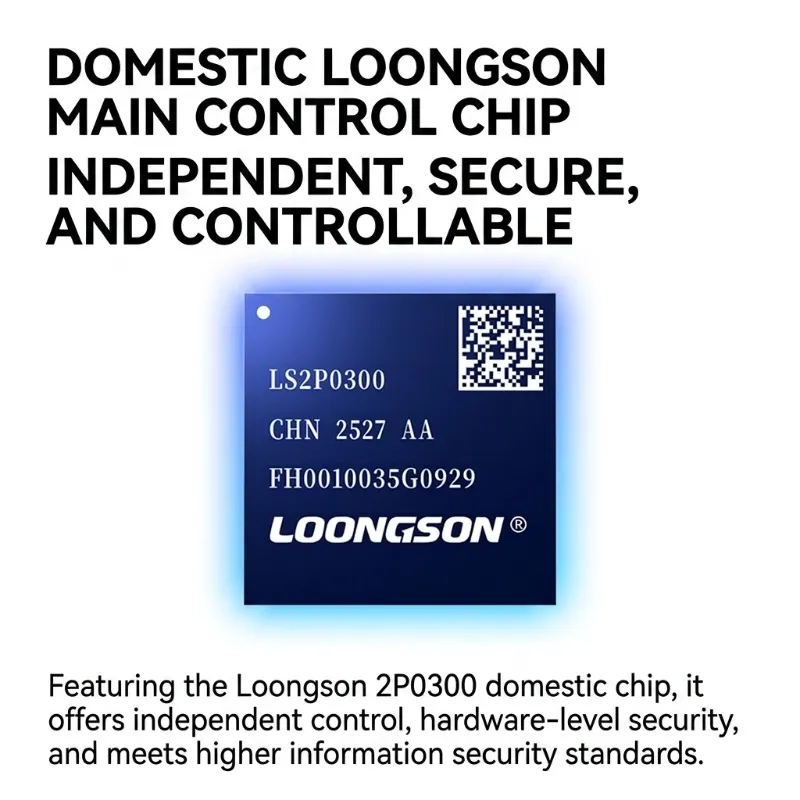

| SOC Chip | LS2P0300 | |
| CPU | 1.2GHz | |
| RAM Size | 256MB（TBD） | |
| Monthly Duty Cycle | 80000Pages | |
| Control Panel | 2.4" LCD Screen | |
| Paper Related | ||
| Paper Type | Plain Paper, Thick Paper, Thin Paper | |
| Paper Cassette Capacity(*1) | Input Tray | 250Pages |
| Output Tray | 100Pages | |
| Manual Feeder | 50Pages | |
| Auto Feeder(ADF) | 50Pages | |
| Paper Size | Input Tray | A4、A5、A6、B5、B6 (JIS)、B5 (ISO)、B6 (ISO)、16K、16K、16K、32K、Executive、Letter |
| Manual Feeder | A4、A5、A6、B5、B6 (JIS)、B5 (ISO)、B6 (ISO)、16K、16K、16K、32K、Executive、Letter、Legal、Folio、C5 envelope、C6 envelope、C65 envelope、Monarch envelope、#10 envelope、Envelope DL、Envelope Tax、Postcard | |
| Auto Feeder | Width 105-216mm Length 148-356mm | |
| Auto-duplex print | A4、Letter | |
| Customized | Width 76-216mm Length 148-356mm | |
| Paper Weight | Input Tray | 65-100g/m2 |
| Auto-duplex print | 70-80g/m2 | |
| Manual Feeder | 65-200g/m2 | |
| Auto Feeder | 70-90g/m2 | |
| Copy | ||
| Copy Speed | 31ppm A4 | |
| First Copy Out Time | Less than 15S | |
| Copy Resolution | 600x600dpi, 1,200x600dpi(Photo Mode) | |
| Copies | 1-99 | |
| Duplex Copy | Yes | |
| N in 1 Copying | 2 in 1 landscape、2 in 1 portrait、4 in 1 landscape、4 in 1 portrait | |
| ID Copying | Yes | |
| Scaling | 25~400% | |
| Scan | ||
| Scan to USB Flash Drive | NA | |
| Scan to Email (Update later) | Yes | |
| Scan to PC | Yes | |
| Scan Mode | CIS | |
| Scan Resolution | 1200x1200 dpi | |
| Scan Color scale | 24 bit | |
| Scan Format | JPG、PNG、BMP、PDF、TIF | |
| Scan Preview | Yes | |
| Auto-duplex Scan | NA | |
| ADF Scanning Speed（A4）(*2) | 20sides/min | |
| Environment | ||
| Operating Atmos. | Temp. | 5~35℃（suggest 16~32℃） |
| Humidity | 20%~80%（suggest 30%~70%） | |
| Rating Voltage/Current | 220V-240V 4.3A 50Hz | |
| Power Consumption | Working | TBD |
| Sleeping | TBD | |
| Noise | Printing | 53db（TBD） |
| scanning | TBD | |
| standby | TBD | |
| Baisc Specs | ||
| Product Size(L*W*H) | 420x363x362mm | |
| Packing Size(L*W*H) | 520x440x450mm | |
| N.W. | 10.6kg | |
| G.W. | 12.8kg | |
| Consumables | ||
| Consumables capacity | Seperate Retail | T317：3500Pages(refill) T317XL:7000Pages(refill) |
| Packed with machine | T317:3500Pages(refill) | |
| Refill Toner | T407R：3500Pages | |
| Packagings | Printer*1，Product Safety Manual*1, Quick Using Manual*1, Warranty card*1， Power cord *1, USB*1 | |
*1 The capacity of the carton is calculated on the basis of 70 g/m² thick paper.
*2 ADF scanning speed: tested in grayscale and 300 dpi mode.
*3 Compliant with ISO19752 standard, continuous printing of A4 paper, the actual print volume varies according to the printing environment and the content of the printed image.
